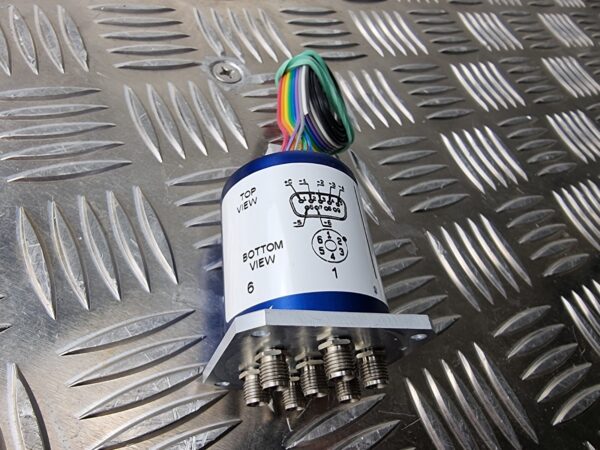

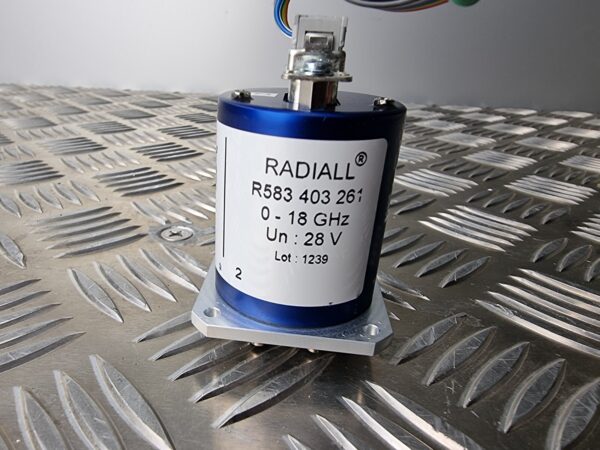

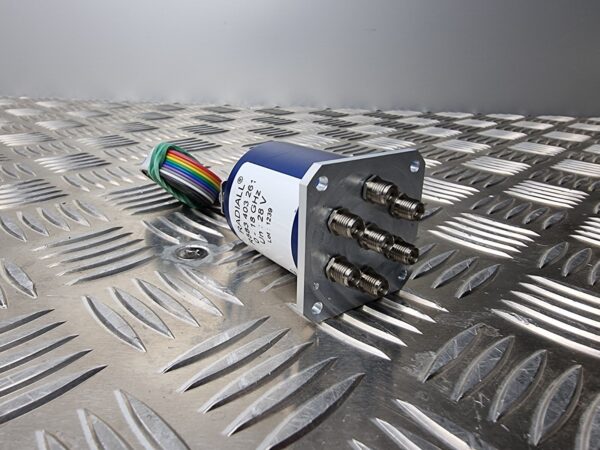

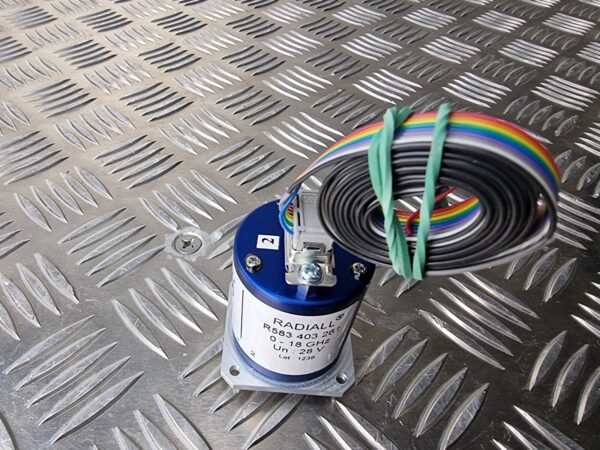

The Radiall R583 403 261 is an SPDT (Single-Pole, Double-Throw) coaxial switch, designed for high-frequency RF and microwave applications. This specific model operates within the frequency range of 0 to 18 GHz and requires a 28V DC supply for actuation. Radiall is known for producing high-quality, reliable RF switching products used in various industries, including telecommunications, defense, aerospace, and test and measurement systems.

Key Features of the Radiall R583 403 261:

1. Frequency Range:

   • 0-18 GHz : The switch covers a wide frequency range, making it suitable for various RF and microwave applications, including communication systems, radar, and test setups.

2. SPDT (Single-Pole, Double-Throw):

   • The switch has one input (single pole) that can be connected to one of two outputs (double throw). This configuration is commonly used for routing signals between two paths or antennas in RF systems.

3. 28V DC Actuation Voltage:

   • The switch requires 28V DC for operation, which is typical for many RF switches in high-reliability systems. The voltage actuates the internal mechanisms to change the signal path.

4. Low Insertion Loss:

   • Insertion loss refers to the amount of signal loss when passing through the switch. The Radiall R583 403 261 is designed to have minimal insertion loss, ensuring that signal integrity is maintained, even at high frequencies.

5. High Isolation:

   • Isolation is the degree to which the switch prevents signal leakage between the unconnected ports. High isolation is essential in RF systems to avoid interference between different signal paths.

6. Reliability and Durability:

   • Radiall switches are known for their rugged design and long operational life, withstanding millions of switching cycles. This makes them ideal for use in environments where frequent switching is required.

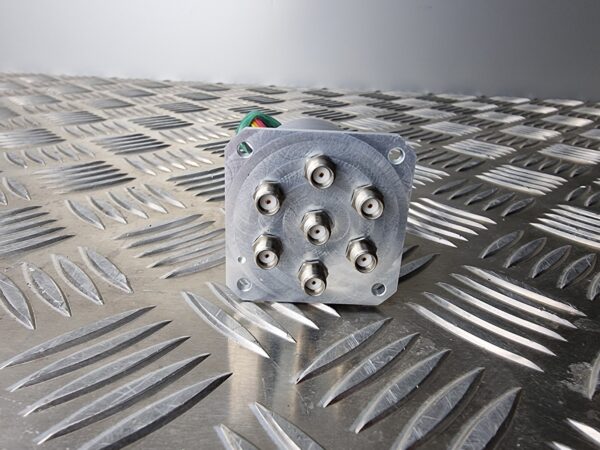

7. Coaxial Design:

   • The switch has a coaxial design, which is optimized for RF signal routing with minimal signal degradation. The connectors are typically standard RF types, such as SMA or N-Type , but can vary depending on specific requirements.
