The Omron G7SA-5A1B relay with the P7SA-14F-ND socket base is a safety relay unit designed for use in safety-critical applications, such as emergency stop circuits and interlock systems. Below is a detailed overview of this relay and its associated socket base:

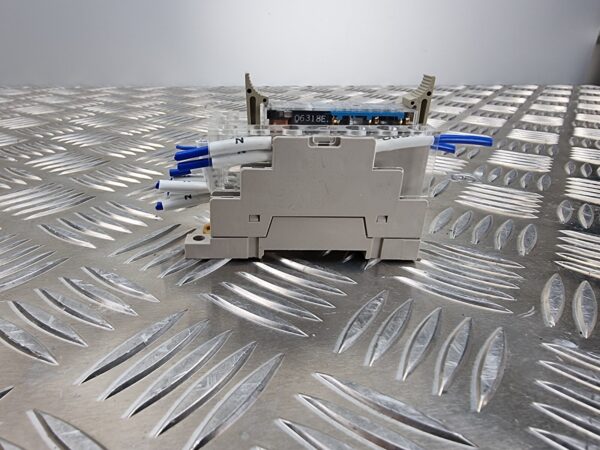

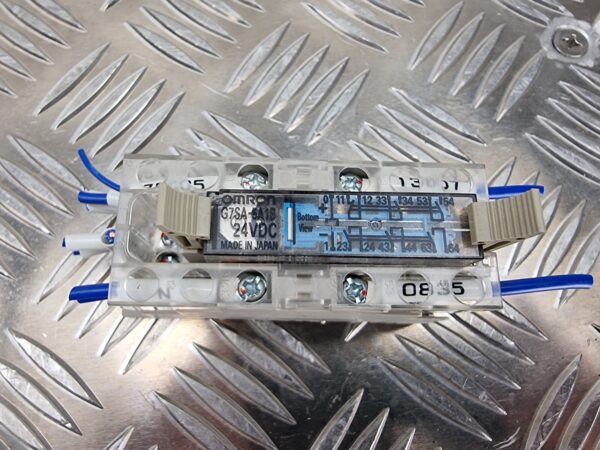

Omron G7SA-5A1B Relay
Key Features :
- Safety Certification : Certified for safety applications with forcibly guided contacts (EN 50205 Type A) to ensure fail-safe operation.
- Compact Design : Small form factor ideal for tight spaces while ensuring reliable operation.
- Contact Configuration :
- 5A1B : 5 normally open (NO) and 1 normally closed (NC) contacts, providing flexibility for various circuit requirements.
- Coil Voltage : Operates at 24V DC.
- High Dielectric Strength : Designed to prevent contact welding and provide high insulation performance.
- Durability :
- Electrical : Rated for many cycles of switching under load.
- Mechanical : Long operational life.

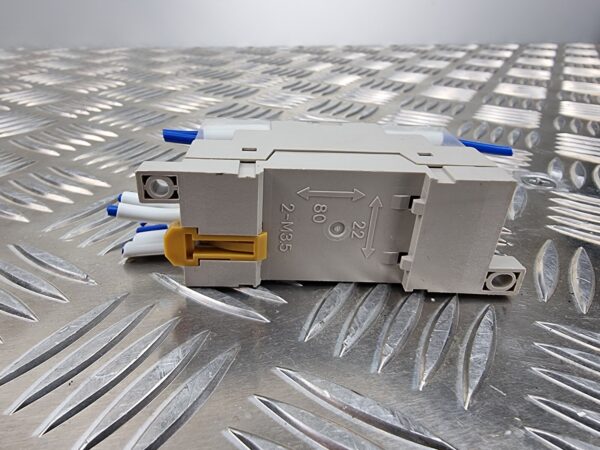

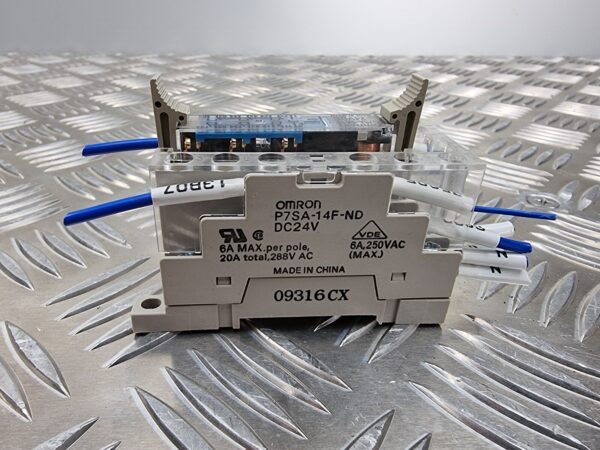

P7SA-14F-ND Socket Base
Key Features :
- Easy Mounting : DIN rail or screw mounting options for quick installation.
- Clear Terminal Layout : Simplifies wiring and troubleshooting.
- Finger Protection : Ensures operator safety by protecting against accidental contact with live terminals.
- Durable Material : Heat-resistant construction suitable for industrial environments.
Specifications :
| Specification | G7SA-5A1B |
|---|---|
| Coil Voltage | 24V DC |
| Contact Configuration | 5NO + 1NC |
| Contact Rating | 6A at 250VAC / 6A at 30VDC |
| Dielectric Strength | 4,000 VAC (coil-contact) |
| Insulation Resistance | >1,000 MΩ at 500 VDC |
| Temperature Range | -25°C to +55°C |
| Specification | P7SA-14F-ND Socket Base |
|---|---|
| Mounting | DIN Rail / Screw |
| Compatible Relays | G7SA Series |
| Terminal Type | Screw Terminals |
| Insulation Resistance | >1,000 MΩ |
