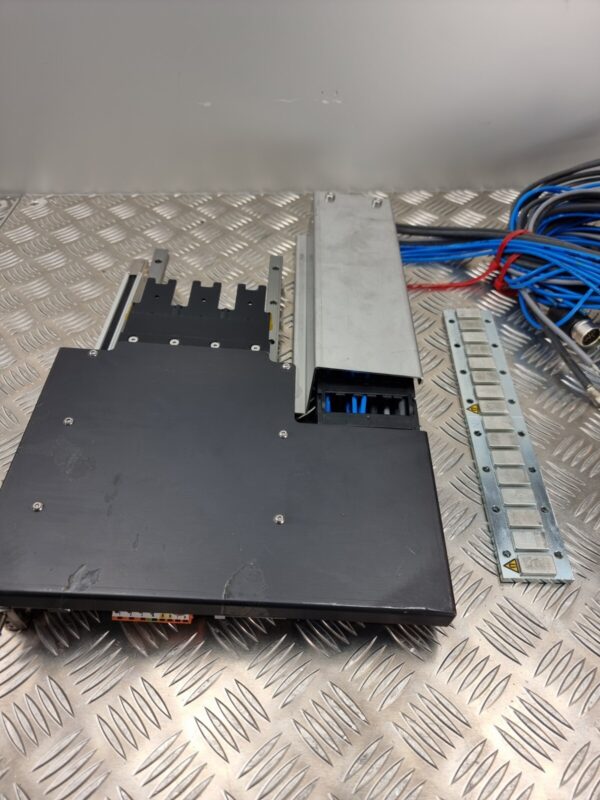

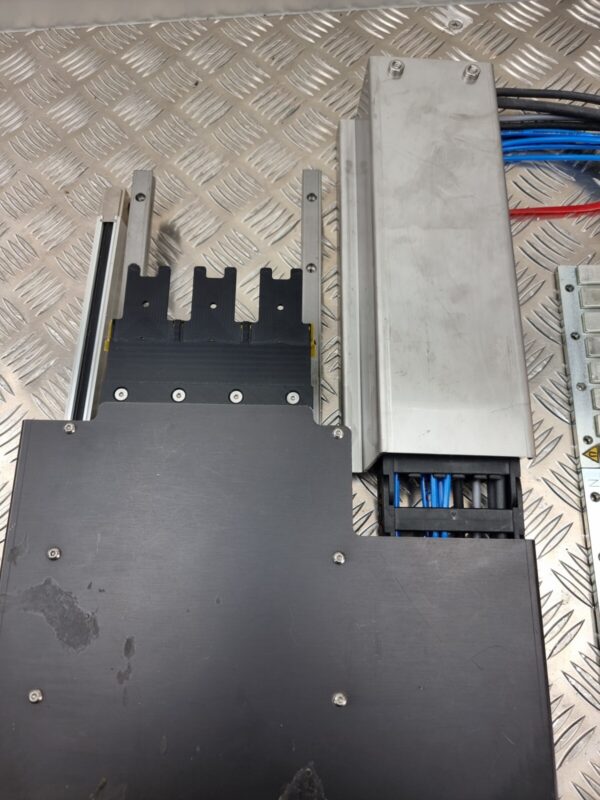

IDAM MP015536 Linear Motor with Heidenhain LC483 10nm Glass Scale – 270mm Travel

High-precision linear motion module featuring an IDAM MP015536 linear motor combined with a Heidenhain LC483 glass scale encoder (10 nm resolution).
This assembly is designed for CNC machines, semiconductor tools, or any high-accuracy motion control applications requiring nanometer-level feedback.

Specifications:

• Motor Type: IDAM MP015536 Linear Motor

• Feedback Sensor: Heidenhain LC483 Glass Scale

• Resolution: 10 nm

• Measuring Length: 270 mm

• Travel: Approx. 250–270 mm

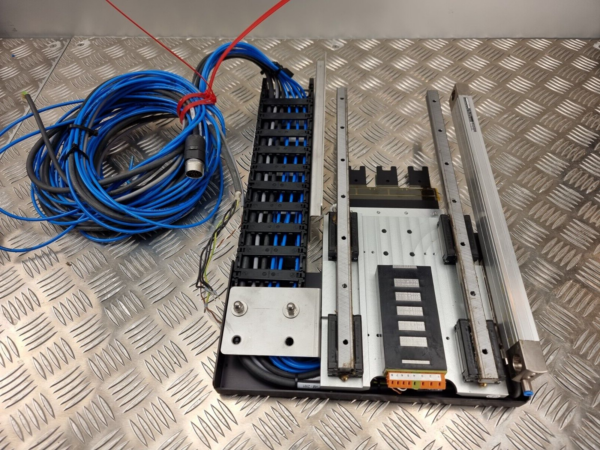

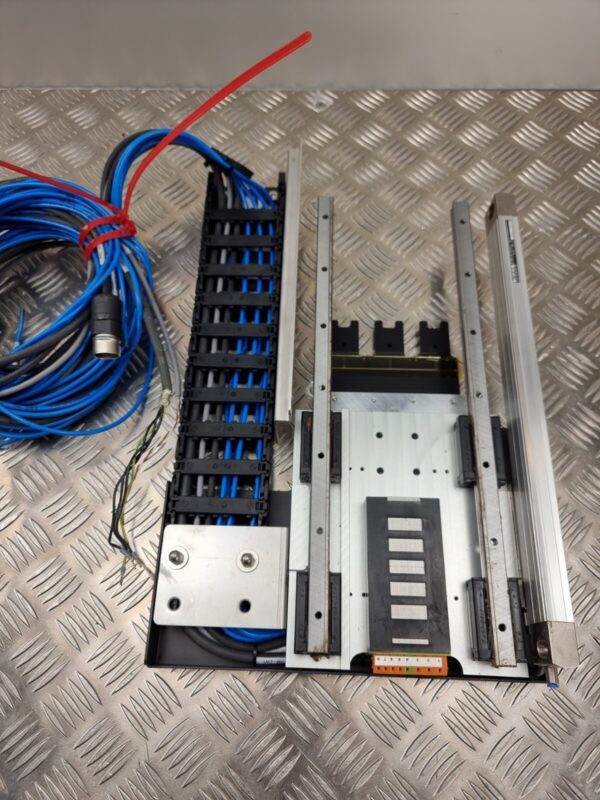

• Components Included:

  • Linear motor with integrated rail and carriage

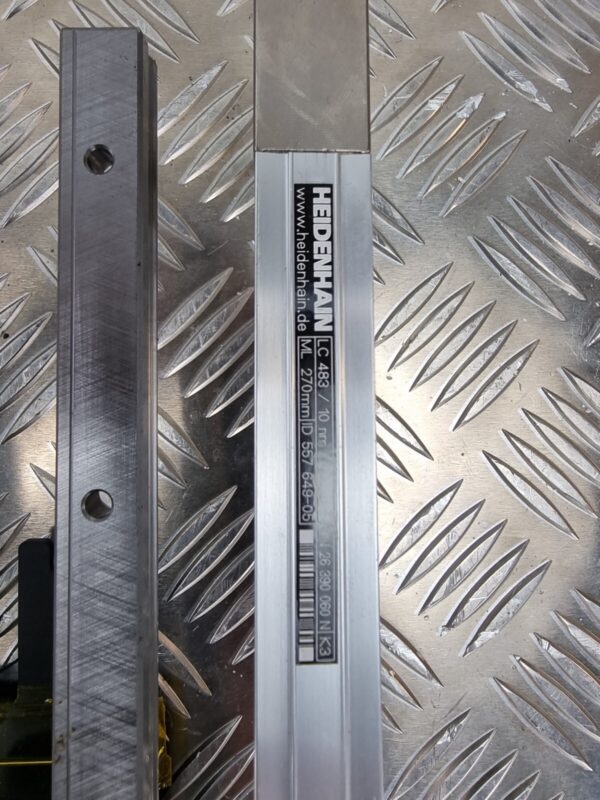

  • Heidenhain LC483 optical scale

  • Cable chain with wiring harness and connector

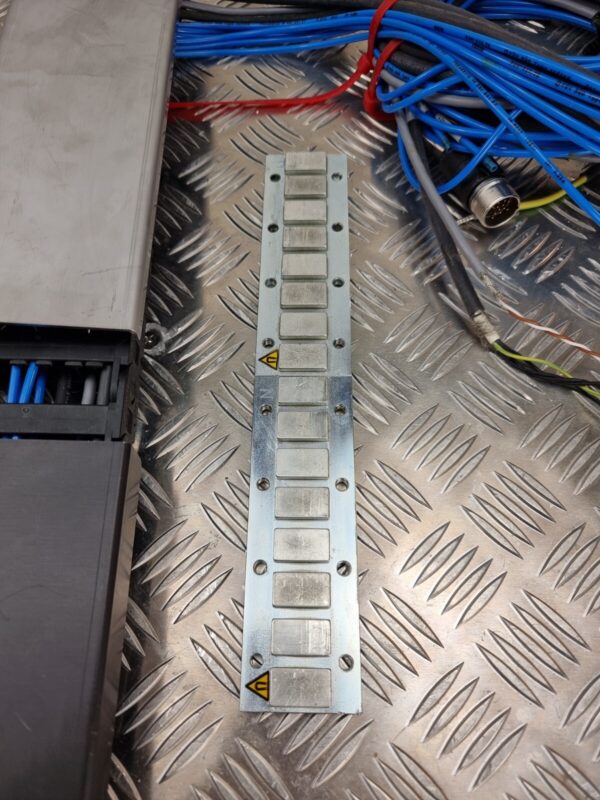

  • Aluminum base plate and magnetic rail segments

• Manufacturer: IDAM (Dr. Johannes Heidenhain GmbH)

• Country of Manufacture: Germany

Condition:
Used, clean, and complete. Moved smoothly by hand; no electrical testing performed.
Ideal for reuse, spare parts, or integration into precision automation systems.

Applications:

• CNC machine retrofits

• Semiconductor and laser positioning systems

• High-accuracy motion and inspection equipment
