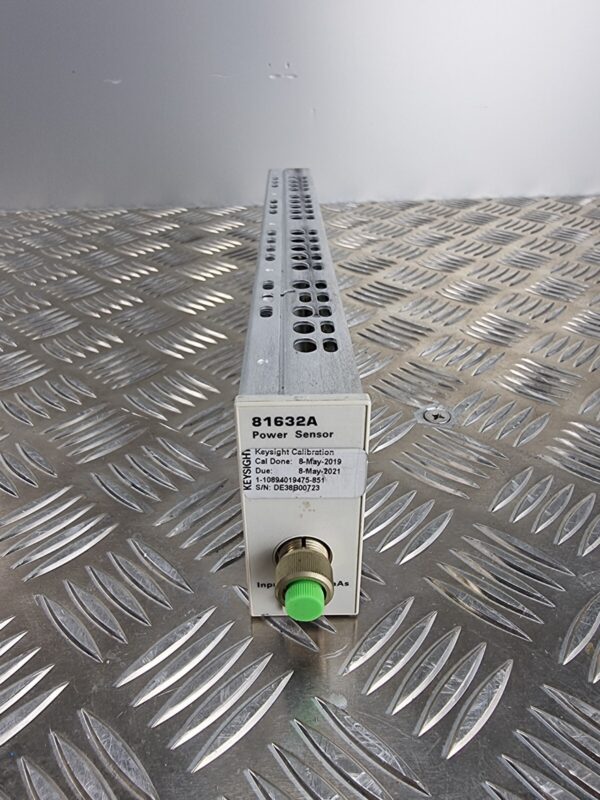

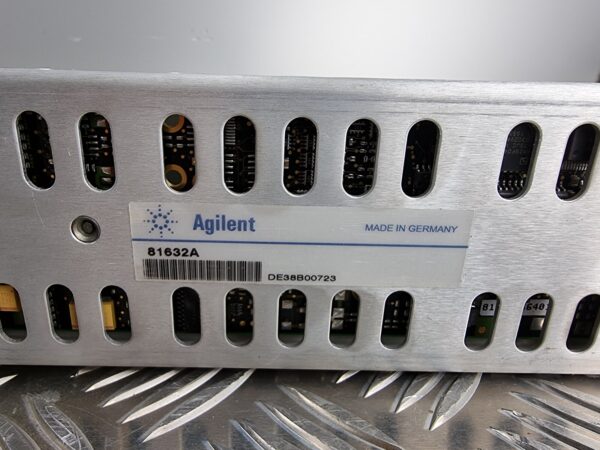

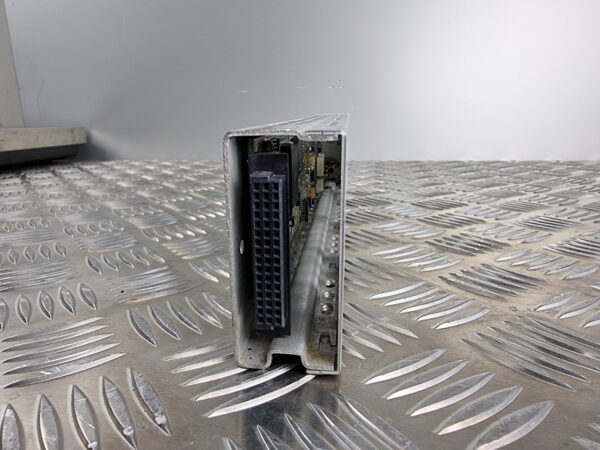

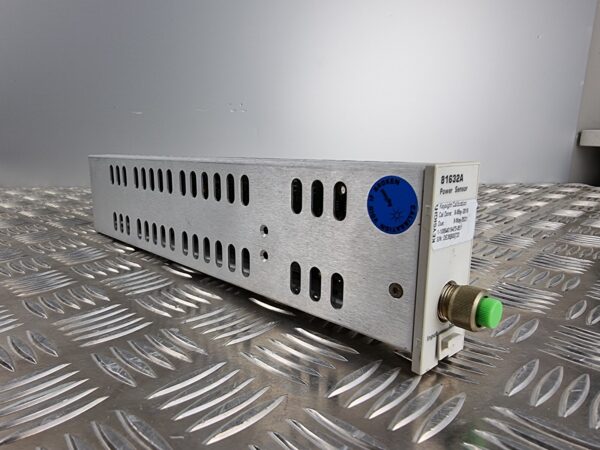

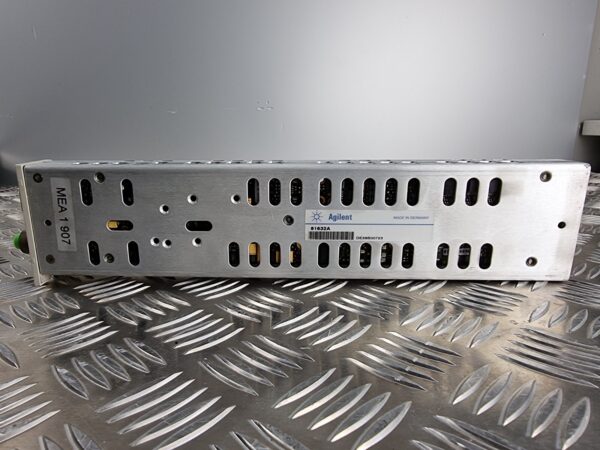

The Agilent HP 81632A Optical Power Sensor Module is a high-precision optical power sensor designed for use with optical measurement systems, particularly in fiber optic communications, research, and production environments. It is part of Agilent’s (now Keysight Technologies) optical power measurement product line, which is widely used in the testing and characterization of optical components, systems, and networks.

Key Features and Specifications:

Wavelength Range:

• 800 nm to 1700 nm : The 81632A is designed to measure optical power over a wide wavelength range, covering key wavelengths used in telecommunications (850 nm, 1310 nm, 1550 nm) and other fiber optic applications.

Measurement Range:

• Power Measurement Range: Typically, the power measurement range is from -90 dBm to +10 dBm , allowing for accurate measurement of both very low and moderately high optical power levels.
• High Sensitivity : The module is designed to measure very low power levels, making it ideal for applications that require high sensitivity, such as testing weak optical signals or attenuated light.

Connector Compatibility:

• Interchangeable Connector Interface (PCI) : The 81632A supports various optical connector interfaces (FC, SC, ST, etc.), allowing for easy connection to a wide variety of fiber optic components and systems.
• Low Insertion Loss : Ensures minimal signal loss when connecting to optical fibers, helping maintain measurement accuracy.

Accuracy and Linearity:

• High Accuracy : The module is highly accurate, with a typical uncertainty of less than 5%, making it suitable for precise optical power measurements in critical applications.
• Excellent Linearity : Ensures that power measurements remain accurate across the entire measurement range, which is important when testing the performance of optical systems over a wide dynamic range.

Compatibility with Agilent/Keysight Optical Mainframes:

• The 81632A is designed to be used with Agilent’s optical test mainframes, such as the 8163A , 8164A , or 8166A . It slides into the mainframe, which provides power and user control through a graphical interface.

Importantinformation:

Price(s) do not include VAT!: For more information, please scroll down to”Terms & Conditions”, section “Payment”.

Shipping: Please contact us for a specific shipping price.

Terms& Conditions

Thissale includes the equipment ONLY. No other parts or accessories will be included unless otherwise mentionedin the sales notification.

Payment

Fullpayment is due within 2 business days from sale unlessseparately agreed otherwise in advance.

Pleasenote that all prices are VAT (tax) excluded and EXW Estonian warehouse(EXW = Ex Works).

Incase you are:

– Aprivate purchaser / consumer inside EU, please note that VAT (tax) will be addedto the total price. Tax rate (%) is 24%

– Abusiness buyer inside EU (except Estonian companies), please provide us yourvalid VAT number and the price stays the same (no VAT added)

-Outside European Community VAT is not applied
