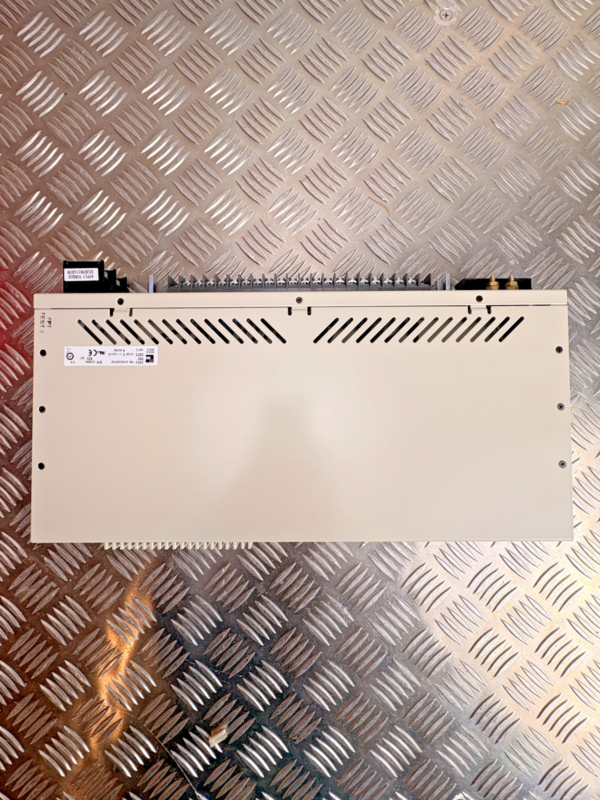

ADC PowerWorx PWX-001RGCSS20PSDP Fuse Panel S20 -24/-48VDC 65A 20 Position Rack

ADC PowerWorx unit marked as:

CAT#: PWX-001RGCSS20PSDP Description on drawing: “FUSE PANEL S 20”

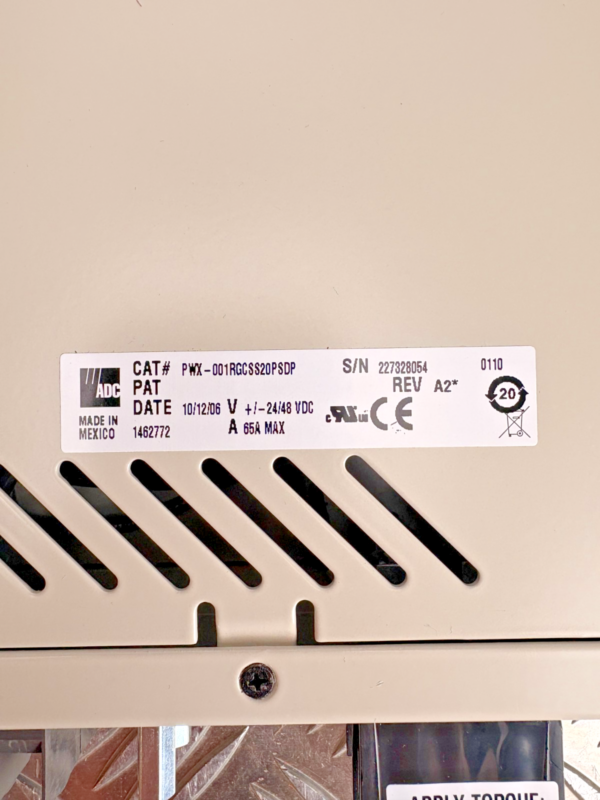

Technical markings from label:

• Input: -24 / -48 VDC
• Max current: 65A
• 20 numbered positions on front panel
• Made in Mexico
• Date: 10/12/2006

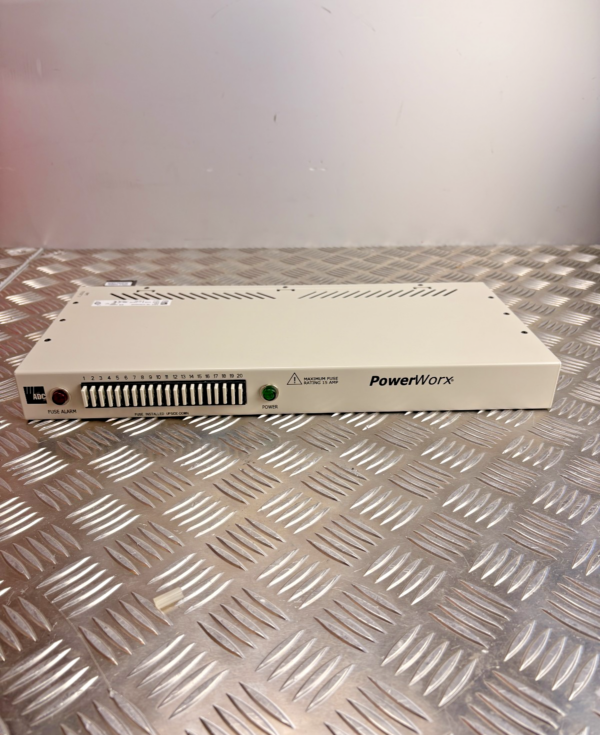

Front panel includes:

• Numbered positions 1–20
• “Fuse Alarm” indicator (red)
• “Power” indicator (green)

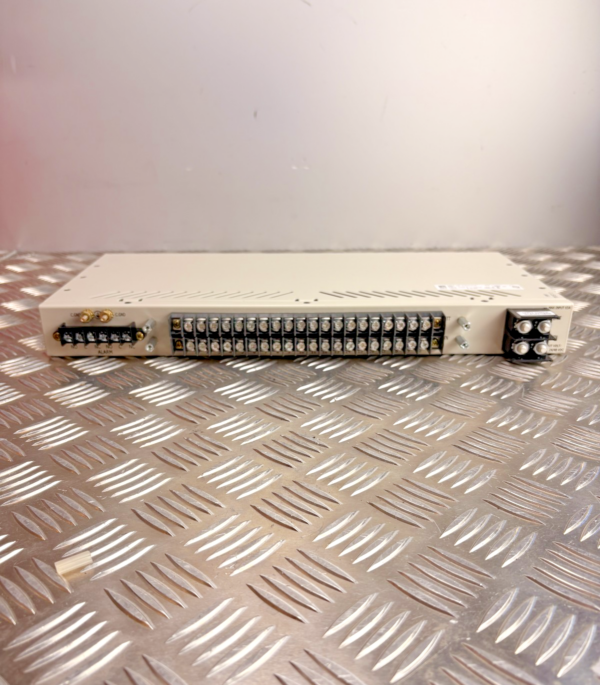

Rear side includes:

• Screw terminal connection block (visible)

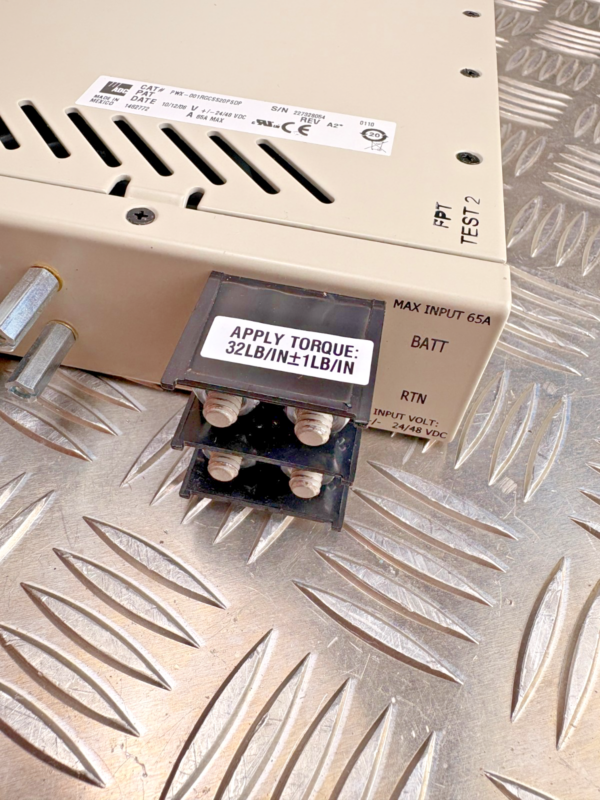

• Additional connection points labeled: BATT / RTN
• Marking: MAX INPUT 65A

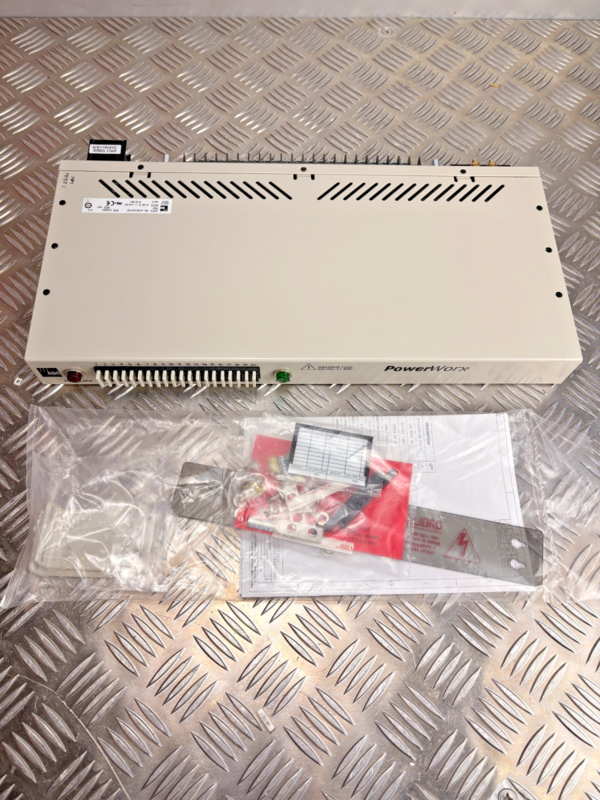

Includes:

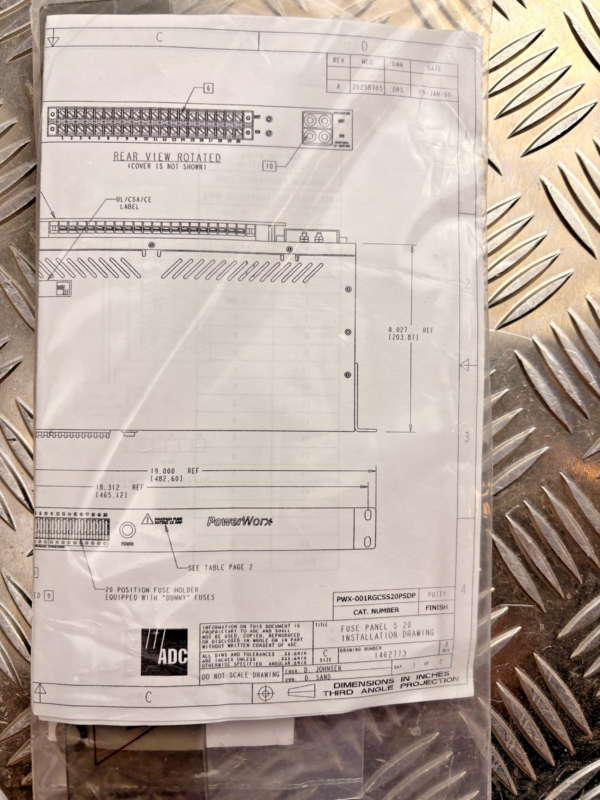

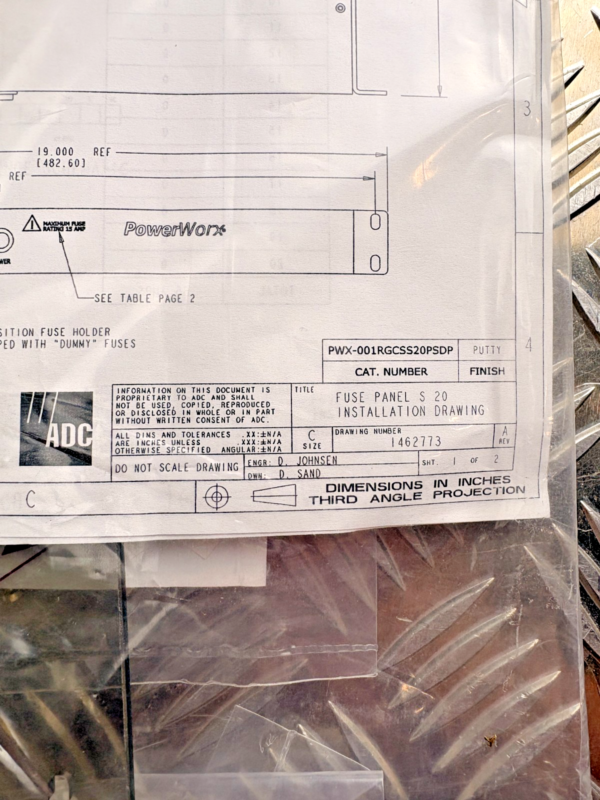

• Printed installation drawing (ADC document)
• Small accessory/parts kit (as shown)

No additional assumptions made — all details taken directly from labels and photos.

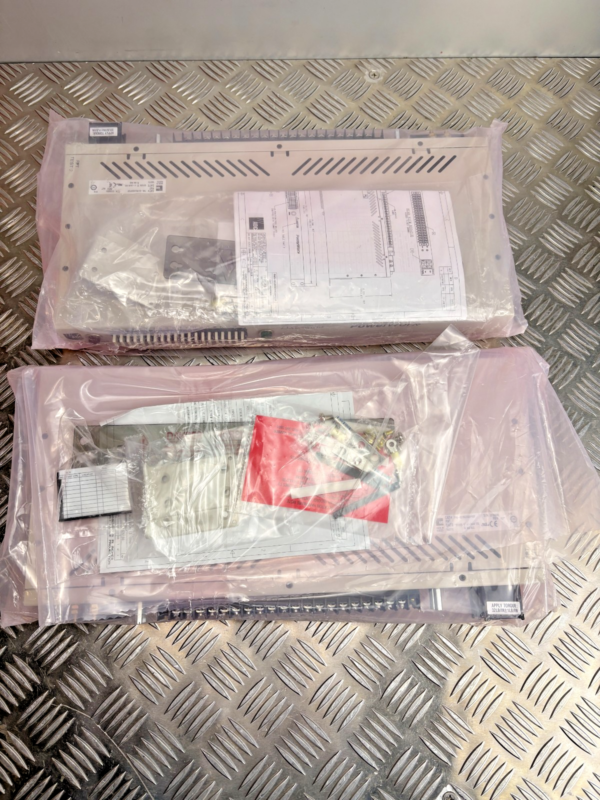

Exact item shown in pictures.
